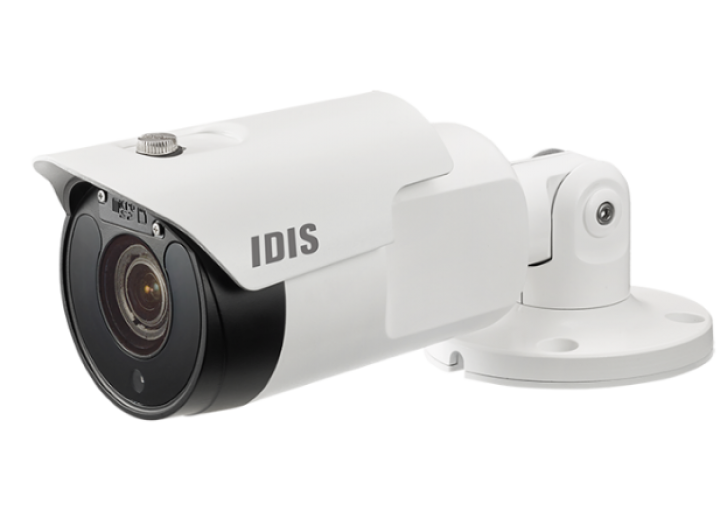

Bullet camera DC-T4236WRX-A
| Easy installation with DirectIP NVR, Full HD (1080p) resolution | |
|---|---|
| Motorized Vari-focal lens (f=2.8 - 12mm), micro SD/SDHC/SDXC | |
| Alarm in / out, IK10 / IP67 supports, PoE (IEEE 802.3af Class 3), 12V DC | |
| Day and night (ICR), True wide dynamic range (WDR) | |
| IR LED (Distance 30m / 98.4ft), 3-axis mechanical design for installation | |
| Supports ONVIF |
On the list Product Inquiry
본문
Product specification
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.8-12mm |
| Aperture | F 1.4~2.8 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 98°(H) 51°(V) 116°(D) Tele : 33°(H) 19°(V) 38°(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| TDN / WDR | Yes(ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft(6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode Sharpness, Contrast, Colors, Brightness Control |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Video Compression Level (Quality) | Basic, Standard, High, Very High |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| IP Camera Protocol | DirectIP™ Mode : DirectIP 2.0, ONVIF Compatibility Mode : DirectIP 2.0, ONVIF |
| Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080(WDR) Compatibility Mode : 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | DirectIP™ Mode : Quaruple Streaming Compatibility Mode : Quaruple Streaming |
| Network Protocols | DirectIP™ Mode : DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp Compatibility Mode : DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | DirectIP™ Mode : SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption Compatibility Mode : SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP™ Mode : DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite Compatibility Mode : DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Material | Metal |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3), DC12V |
| Power Consumption | 12V=, 0.78A, 9.3W PoE, IEEE 802.3af (Class 3), 8.5W |
| Approval | FCC |
| Mechanical | |
| Dimensions (W x H) | Φ 77mm X 244.1mm (Φ 3" x 9.61") |
| Weight | 0.84 kg |
