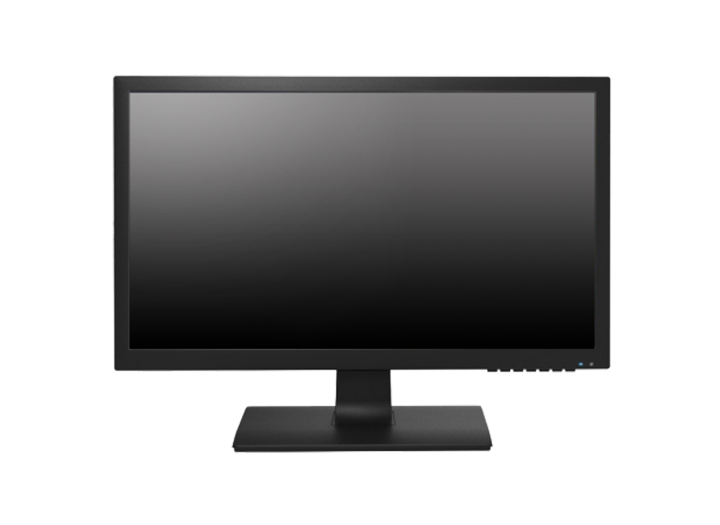

Monitor [21.5’’]SM-F212
| 22Inch Full HD LED Panel(TN Type) | |
|---|---|
| Non-Glare Type LED Glass | |
| Response Time(5ms) | |
| Long Reliability Life Time(50K Hours & 24/7/365) | |
| Supports multiple Interface ports | |
| Low Power consumption(<0.5W; saving mode) | |
| Prevent Burn-In feature, VESA Mount(100x100) |
On the list Product Inquiry
본문
Product specification
| en Size | 21.5 Inch |
| Active Display Area | 476.64mm(H) x268.11mm(V) |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Panel Technology | TN Type |
| Pixel Pitch | 0.24825mm(H) x 0.24825mm(V) |
| Brightness | 220cd/m² |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle(H/V) | 170°/160° |
| Display Color | 16.7 Millions |
| H-Scanning Frequency | 30~80Khz |
| V-Scanning Frequency | 50~75Khz |
| Response Time (G2G) | <5ms |
| Panel Life Time | 50,000Hours |
| Interface | |
| Hybrid(AHD,TVI,CVI,CVBS) In/Ou | - |
| HDMI In | 1 |
| Display Port | - |
| VGA Input | 1 |
| DVI Input | - |
| Audio In/Out | 1/- |
| BNC Video In/Out | 1/1 |
| S-Video In/Out | - |
| Component Y/pb/Pr In | - |
| S/PIDF Output | - |
| RS232 In/Out | - |
| USB | - |
| GENERAL | |
| Outline Dimension(WxHXD) | 507.0mmx370.2mmx149.1mm (19.96"x14.56"x5.87") |
| Bezel width (Spec. for VideoWa | - |
| Net Weight/Gross Weight | 3.8Kg(8.38lb)/4.8Kg(10.58lb) |
| Material/Color | Plastic / Black |
| Warranty-Parts/Labor | 3 Year / 3 Year |
| MTBF | 50,000 Hours(Panel) |
| Power Supply | DC 12V, 3A(AC100~240V[50/60Hz]) |
| Power Consumption - Typical | 25.2W |
| Power Consumption - Stand by | <0.5W |
| Power Savings(DPMS) | Yes |
| Operating Temperature | 0°~40°C(32°F~104°F) |
| Storange Temperature | -20°~60°C(-4°F~140°F) |
| Built-In Speaker | Yes(3Wx2) |
| Remote Control | Yes |
| VESA Mount Size | 100mm x 100mm / M4 x 6 Screws |
| EXTERNAL CONTROLS | |
| IR Sensor(For Remote Control) | Built-In |
| Serial In/Out | - |
| USB | - |
