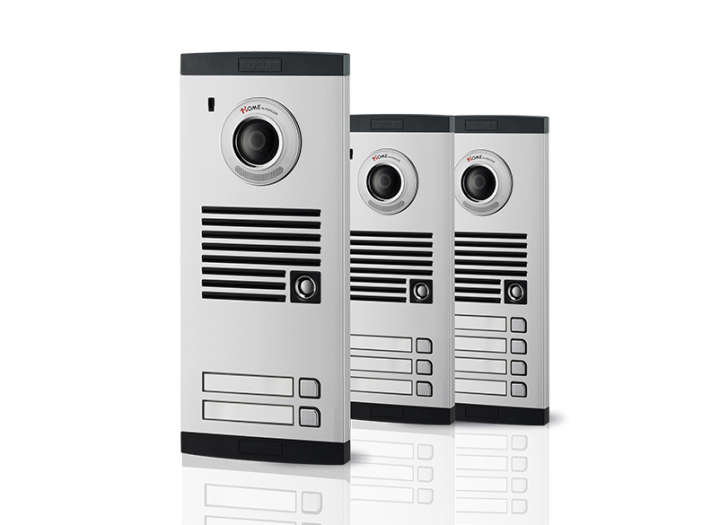

Interphone KVL-C202i/C203i/C204i
| - Mutual call with residents | |
|---|---|
| - Easy & simple installation | |
| - Door Open by I-Button Key (Dallas Chip) *optional | |
| - Up to 1,300 numbers of I-Button Key registration | |
| - White LED for visitor recognition at night |
On the list Product Inquiry
본문
Product specification
Specifications
| Power | DC 12V, 1.5A |
|---|---|
| Power consumption | 1.2W at stand by 5.6W in operation |
| Horizontal Resolution | Over 420 TV Lines |
| Operating Temperature | -20℃ ~ +50℃ |
| TV System | NTSC / PAL |
| Lens | F = 3.6mm, F : 1.6 |
| Camera Angle | Diagonal 81°(angle adjustable) |
| AGC Control | Auto |
| BLC | Auto |
| Body Material | METAL ( Zn, Al ) |
| Min. illumination | 0.1 Lux (LED On) |
| Mount type | Flush Mount |
| Dimension | 125(W) x 290(H) 48.4(D) mm |
