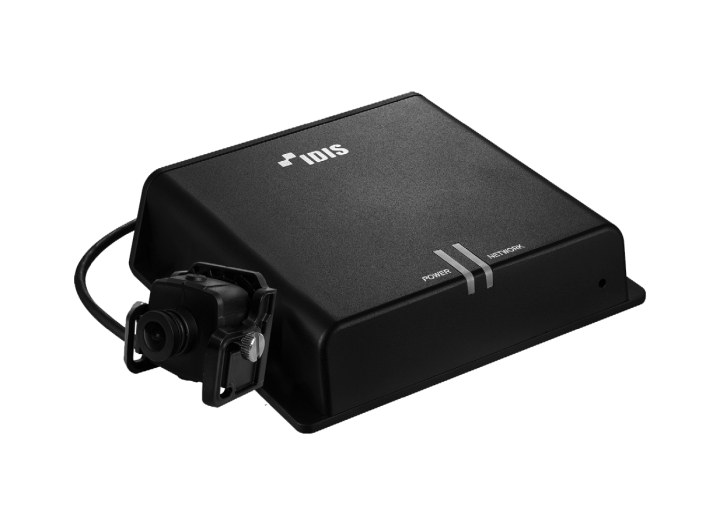

Special camera [Covert Modular]DC-V4211XJ 2.4mm
| Full HD (1080p) resolution | |
|---|---|
| Fixed-focal lens (f=2.4mm) | |
| micro SD/SDHC/SDXC | |
| Two-way audio, Alarm in / out | |
| PoE (IEEE 802.3af Class 4) | |
| True wide dynamic range (WDR) | |
| Easy installation with DirectIP NVR, Supports ONVIF |
On the list Product Inquiry
본문
Product specification
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920x1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal Board type |
| Focal Length | f=2.4mm |
| Aperture | F=2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 132.1°(H), 73.6°(V), 152.1°(D) |
| Connector for Camera Module | RJ45 |
| Cable Length for Camera Module | 30m |
| Min. Illumination | COLOR : 0.1 lux B/W : 0.01 lux |
| Dynamic Range | 120dB (True WDR) |
| Day and Night | Electrical |
| IR Distance (LEDs) | N/A |
| Image Setting | Sharpness, 3DNR, Exposure |
| Backlight Compensation | OFF / BLC / WDR / HLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.264 (MP), M-JPEG, H.265 |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | N/A |
| Outdoor Ready | N/A |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3at (Class 4) |
| Power Consumption | 12V=, 0.49A, 5.88W PoE, IEEE 802.3at(Class 4), 7.1W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H x D) - Main module | 153mm x 36.5mm x 132.7mm (6.02" x 1.44" x 5.22") |
| Dimensions (W x H x D) - Camera module | Body Only : 37(W) x 37(H) x 30.5(D) mm With Bracket : 58(W) x 45(H) x 59.5(D) mm |
| Weight - Main module | 0.055kg (0.12 lb) |
| Weight - Camera module | 0.48kg (1.06 lb) |
