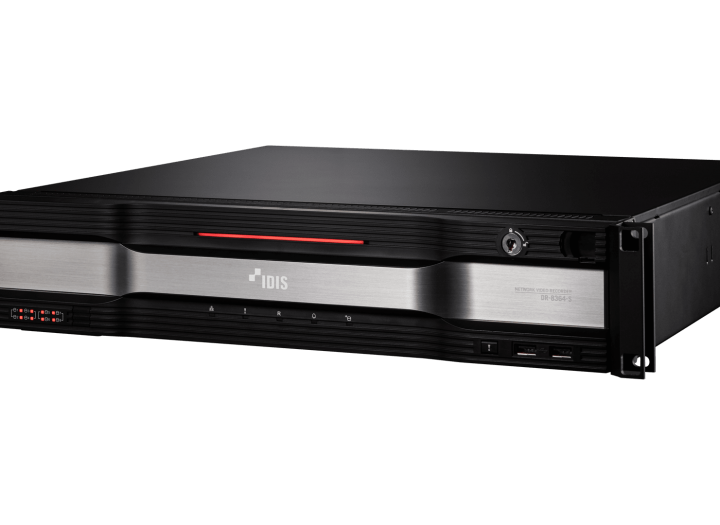

Recording device [32CH]DR-8432D
| Total incoming throughput 370Mbps, Up to 960ips UHD real-time recording | |
|---|---|
| Supports H.265 / H.264 codec, Supports UHD display, Up to 960ips live display | |
| Easy to install, set-up, and play with DirectIP cameras | |
| Expandable up to 144TB using eSATA storage, Supports RAID 1, 5, 6, 10 | |
| Hot swap with RAID 1, 5, 6 (Best to replace HDD after NVR shutdown) | |
| Supports Redundant Power | |
| Supports third party cameras (Axis, Panasonic, ONVIF, etc) |
On the list Product Inquiry
본문
Product specification
| USB 2.0 x 2, USB 3.0 x 1 | |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic) |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 482.6mm x 88mm x 523.3mm (19" x 3.5" x 20.6") |
| Unit Weight | 10.9kg (24.03lb) (with 2 HDDs) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | AC 100-240 V, 50/60Hz, 8.0 - 4.0A |
| Power Consumption | 100-240V~, 50/60Hz, 2.0-1.0A, 120W x2 |
| Approvals | FCC, UL, CE, CB, KC, PSE |
